When shipped with the PocketShip boat kit, sail track will be packed and shipped in the boat kit boxes in 8' lengths. When shipped alone sail trail will be in 7' and shorter lengths. There are no additional shipping charges when shipped with the boat kit.

Update for Spring 2026 - All fasteners are now included with the PocketShip Sailing Hardware Package!

Padeyes	Pad Eye 5/8x2-1/4	SCH 7805	8
Racelite Eyestraps	Racelite Eyestraps	CLC	6
Harken Roller Furling Unit	Furling Sys Hi-Load	HAR 435	1
Bobstay Attachment	Shackle 3/16 Halyard Key 1100	WIC 81432	1
Shrouds and Bobstay	SS Wire Rope (500'/SPL)	RIG 5327X19	34
Rigging work	Attach 5/32 NICO	RIG 532ATN	6
Rigging work	Thimble 5/32 Heavy Duty	SDL 170004	6
Rigging work	Nico Sleeve #/32	RIG 532N	6
Rigging work	Heat Shrink Tube 1/2 x 48 (1pk)	ANC 305148	1
Boom Gooseneck	Racelite	RL328 1/2" pin	1
Yard Gooseneck	Racelite	RL 327	1
Rigging work	Rig Labor 1/4 Hour	RIG LABOR	3
Sail Track	Sail Track 5/8" SS (MAST 72" & 24" " YARD 72" & 45")	SCH 7505144	17
Side Shroud Chainplates	Tang 8x1	SCH 8503	2
Side Shroud Backing Plates	Tang 4x1	SCH 8501	2
Side Shroud Attachment	Ring 3/16x1 SS	SDL 191310	2
Side Shroud Attachment	Shackle 1/4 Bow #750 SS	SMI 14B	2
Halyard Leads	Bullet Block W/ Swivel	Har 166	11
Block Attachments	Eye Strap 1/2	SCH 7832	5
Halyard Cleats	jib spinnaker leads	HAR 240	4
Halyard and Control Leads	Bullet Block Cheek	HAR 350 carbo 29mm	6
Jib & Spinnaker Leads	Cam 150 w/Fairlead	HAR 327	4
Mainsheet blocks	Dinghy Block Single	HAR 2650 carbo 40mm	3
Mainsheet ratchet block	Carbo Ratchet	HAR 2670	1
Mainsheet ratchet base	Ball & Socket Base	HAR 461	1
Main outhaul fairlead	Fairlead 3/8 Nylon	SDL 082010	1

Padeyes	Pad Eye 5/8x2-1/4	SCH 7805	8
Racelite Eyestraps	Racelite Eyestraps	CLC	6
Harken Roller Furling Unit	Furling Sys Hi-Load	HAR 435	1
Bobstay Attachment	Shackle 3/16 Halyard Key 1100	WIC 81432	1
Shrouds and Bobstay	SS Wire Rope (500'/SPL)	RIG 5327X19	34
Rigging work	Attach 5/32 NICO	RIG 532ATN	6
Rigging work	Thimble 5/32 Heavy Duty	SDL 170004	6
Rigging work	Nico Sleeve #/32	RIG 532N	6
Rigging work	Heat Shrink Tube 1/2 x 48 (1pk)	ANC 305148	1
Boom Gooseneck	Racelite	RL328 1/2" pin	1
Yard Gooseneck	Racelite	RL 327	1
Rigging work	Rig Labor 1/4 Hour	RIG LABOR	3
Sail Track	Sail Track 5/8" SS (MAST 72" & 24" " YARD 72" & 45")	SCH 7505144	17
Side Shroud Chainplates	Tang 8x1	SCH 8503	2
Side Shroud Backing Plates	Tang 4x1	SCH 8501	2
Side Shroud Attachment	Ring 3/16x1 SS	SDL 191310	2
Side Shroud Attachment	Shackle 1/4 Bow #750 SS	SMI 14B	2
Halyard Leads	Bullet Block W/ Swivel	Har 166	11
Block Attachments	Eye Strap 1/2	SCH 7832	5
Halyard Cleats	jib spinnaker leads	HAR 240	4
Halyard and Control Leads	Bullet Block Cheek	HAR 350 carbo 29mm	6
Jib & Spinnaker Leads	Cam 150 w/Fairlead	HAR 327	4
Mainsheet blocks	Dinghy Block Single	HAR 2650 carbo 40mm	3
Mainsheet ratchet block	Carbo Ratchet	HAR 2670	1
Mainsheet ratchet base	Ball & Socket Base	HAR 461	1
Main outhaul fairlead	Fairlead 3/8 Nylon	SDL 082010	1

BOWSPRIT
Item/Location	Description/Fastener Type	Quantity
Jib Furler and Bobstay Padeyes	#10 x 2" Panhead Machine Screw	2
Jib Furler and Bobstay Padeyes	#10 Locking Nuts	2
Jib Furler Fairlead	#8 x 1-1/2" Panhead Screws	2
Padeye For Spinnaker Tack	#10 x 2" Panhead Machine Screw	2
	#10 Locking Nuts	2
	#10 Flat Washers	2

Chain Plates
Chain Plates	1/4-20 x 1-1/4" Panhead Machine Screws	4
Chain Plates	1/4-20 Locking Nuts	4


Deck Layout
A/B/C/D. Cam Cleats for Halyards and Jib Furler	#10 x 2" Flathead Machine Screws	8
	#10 Flat Washers	8
	#10 Locking Nuts	8
A/B/C/D. Cheek Blocks On Deck	#8 x 1-1/4" Panhead Wood Screws	8
A/B/C/D. Eye Straps for Blocks on Tabernacle	#10 x 3/4" Panhead Wood Screws	8
E. Swivel Cam Cleats for Spin Sheets	#10 x 1" Flathead Wood Screws	6
G. Swivel Cam Cleats for Jib Sheets	#10 x 1" Flathead Machine Screws	6
	#10 Locking Nuts	6
	#10 Flat Washers	6
H. Mooring Cleats	1/4-20 x 2-1/4" Pan or Oval Head Machine Screws	4
	1/4-20 Locking Nuts	4
	1/4-20 Fender Washers	4
J. Cleat for Jib Halyard	#10 x 2" Flat or Oval Head Wood Screws	2
M. Mooring Chocks	#10 x 1" Flat or Oval Head Wood Screws	4
Additional Hardware (Not Included on Deck Layout Section)
Mainsheet Block	#10 x 2" Panhead Wood Screws	4
Gooseneck on Tabernacle (NOTE - These are countersunk on the forward side of the tabernacle so they do not interfere with the mast.)	#10 x 1-1/4" Flathead Machine Screws	4
	#10 Locking Nuts	4


The Masthead
A/F. Padeys for Main and Spinnaker Halyards	#10 x 2-1/2" Panhead Machine Screws	2
A/F. Padeys for Main and Spinnaker Halyards	#10 Locking Nuts	2
C. Pad Eyes for Shrouds	#10 x 2-3/4" Panhead Machine Screws	2
C. Pad Eyes for Shrouds	#10 Locking Nuts	2
D. Pad Eye for Jib Halyard	#10 x 2-3/4" or 3" Panhead Machine Screws	2
	#10 Locking Nuts	2
	#10 Flat Washers	2
E. Jib Halyard Eyestrap "Dead End"	#10 x 1" Panhead Wood Screws	2
G. Main Halyard Eyestrap "Dead End"	#10 x 1" Panhead Wood Screws	2
Additional Hardware (Not Included on Masthead Section)
Cheek Block for Yard Halyard (Just above sailtrack)	#10 x 1-1/2" Panhead Wood Screws	2
Eyestrap "Dead End" for Yard Halyard	#10 x 1" Panhead Wood Screws	2


Yard
Gooseneck Slide	#10 x 1-/12" Panhead Machine Screws	4
Gooseneck Slide	#10 Locking Nuts	4
Eyestrap for Halyard Attachment	#10 x 2" Panhead Wood Screws	2


Boom
Eye Straps for Main Sheet Blocks	#10 x 1-1/2" Panhead Wood Screws	6
Outhaul Cheek Block	#10 x 1-1/2" Panhead Wood Screws	2
Jam Cleat for Outhaul	#10 x 1" Panhead Wood Screws	2
Eyestrap "Dead End" for Outhaul	#10 x 1" Panhead Wood Screws	2


Sailtrack
Top and Bottom Holes on Sailtrack for Mast and Yard	#8 x 1-1/2" Panhead Wood Screws	4
Remain Holes on Sailtrack for Mast and Yard	#6 x 3/4" Panhead Wood Screws	80

Rigging Hardware

5/8" External Sail Slide

5/8" Nylon External Sail Track Stop

5/8" End Stop

5/8" Sail Slide, Shackle & Protector

5/8" Stainless Steel External Sail Track Stop

1/8 Stainless Steel Thimble 6 Pack

Boom Gooseneck

Mast Cap

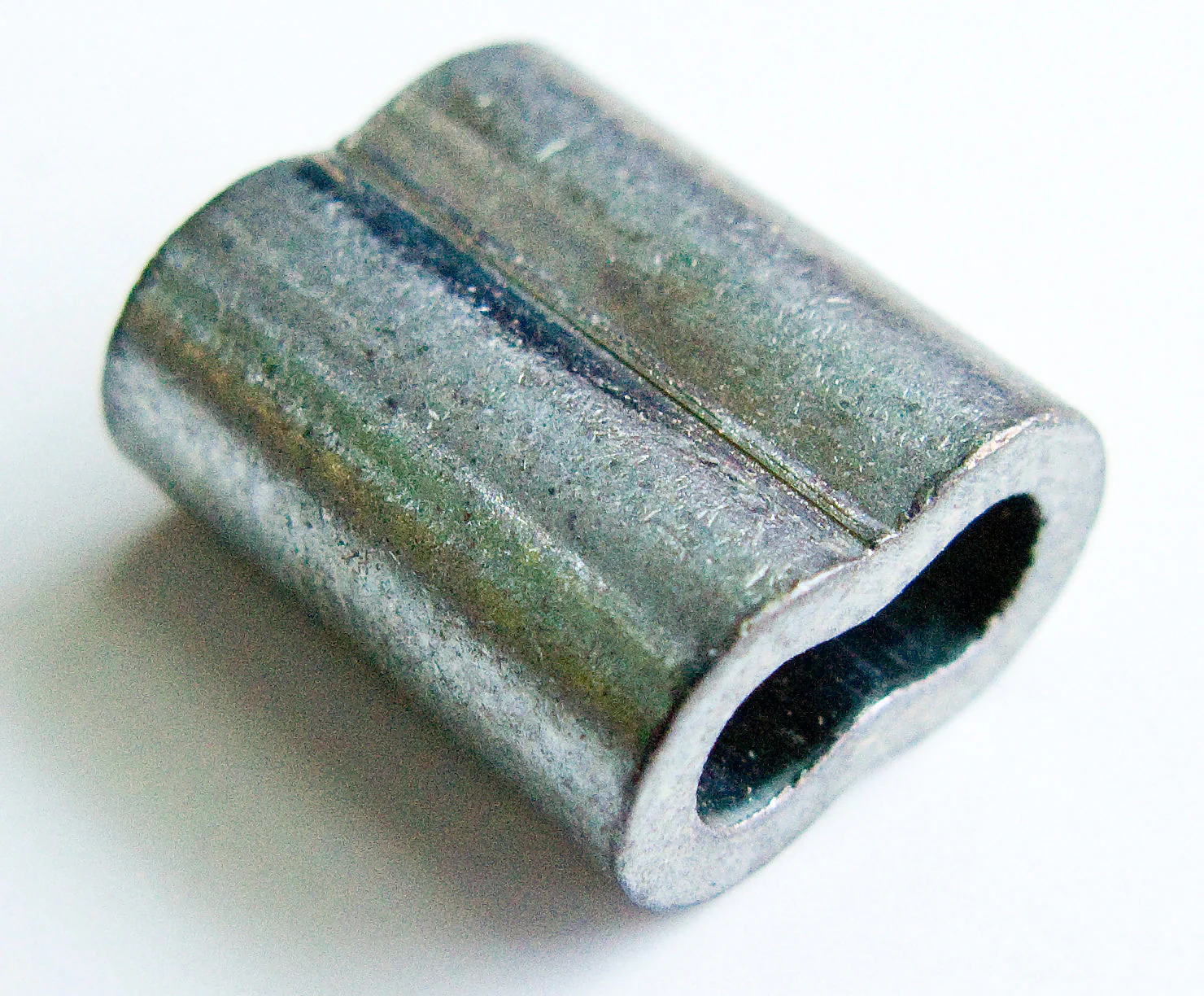

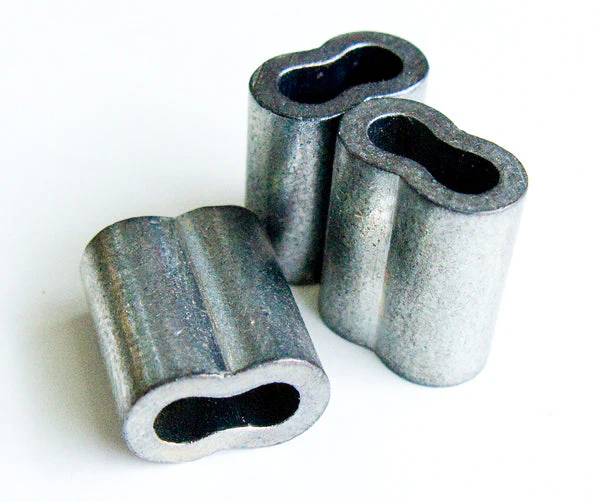

Nico Sleeve 6 Pack

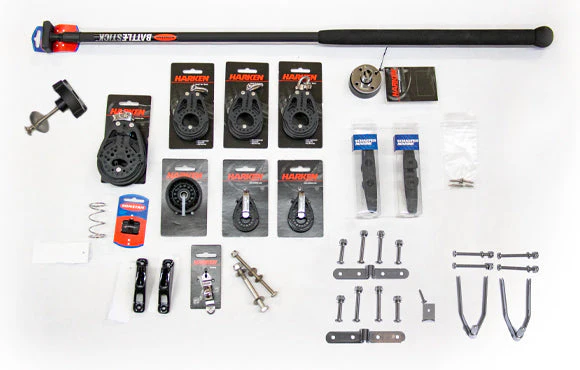

Outrigger Junior Sailing Hardware Package
