PT Eleven Nesting Dinghy Rudder and Daggerboard Kit

PT 11 Foils Kit

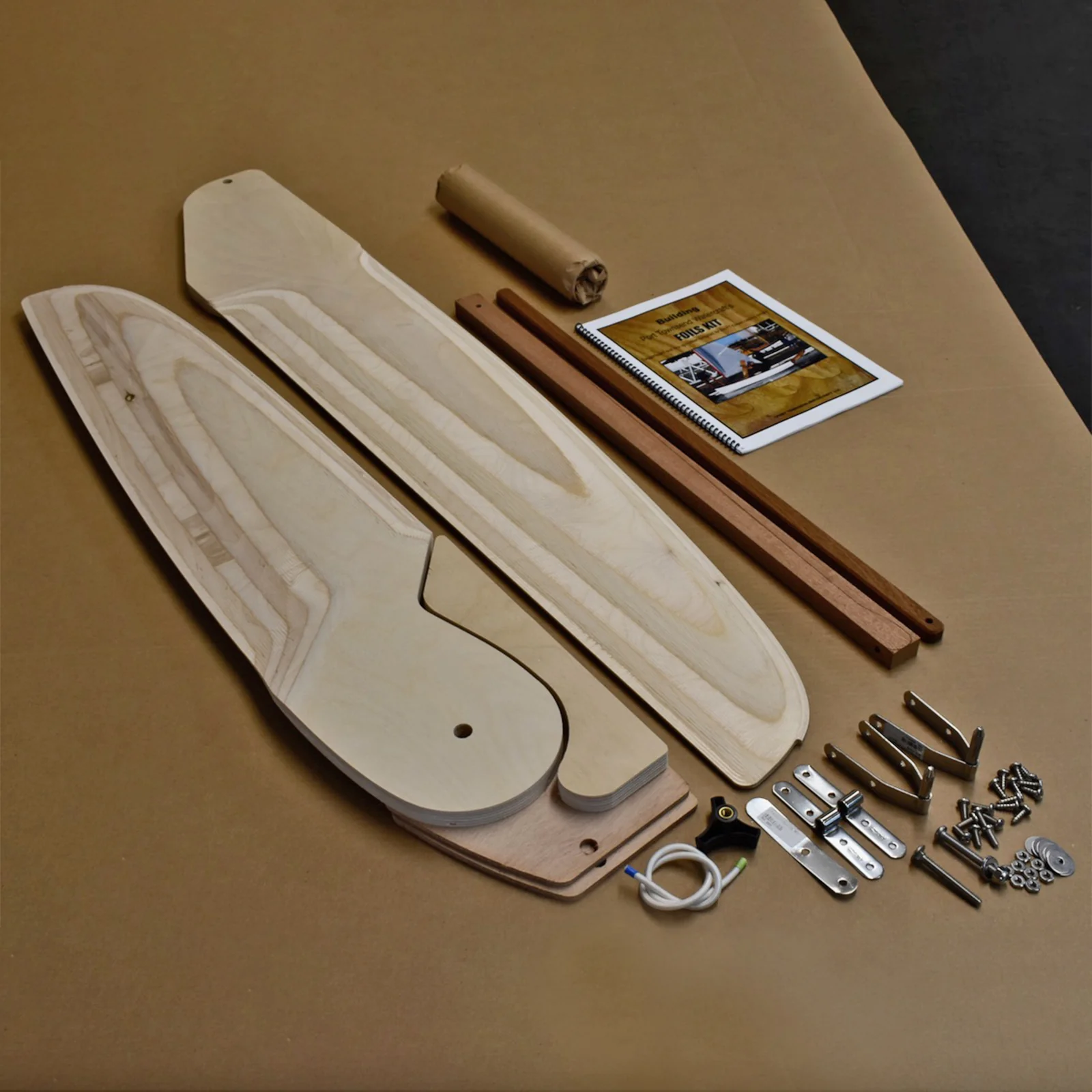

This option includes a machined daggerboard and a rudder with kick-up assembly, fasteners and hardware, a pre-shaped tiller, and a hiking stick.

The foils are CNC-machined from high-strength birch plywood, using a NACA section. The machined foils really improve speed and upwind efficiency!

For the weight and performance offered by these foils, they are affordable and easy to finish.  The builder applies fiberglass and does the finish work and assembly of the kick-up rudder system. The kick-up rudder system folds to be easily stowed.



The tiller is tapered on three sides, shaped at both ends, and drilled. The hiking stick has rounded ends, which are chamfered on the edges, and drilled for attachment.



Foils finished by builder.
